When working with Excel spreadsheets, tracking changes across multiple versions becomes essential for data validation, auditing, and collaborative workflows. Manual inspection is error‑prone and doesn’t scale, especially with large workbooks containing hundreds of rows and complex formulas. GroupDocs.Comparison for .NET enables programmatic Excel spreadsheet comparison with advanced cell‑by‑cell analysis, custom styling, and comprehensive change tracking. This guide demonstrates how to implement sophisticated Excel comparison workflows using GroupDocs.Comparison’s powerful API.

What Is Excel Spreadsheet Comparison?

Excel spreadsheet comparison identifies and highlights differences between two Excel workbooks at the cell level. Unlike text‑based diff tools that treat spreadsheets as binary files, GroupDocs.Comparison understands the Excel format structure and detects:

  • Cell insertions: Newly added cells or rows
  • Cell deletions: Removed cells or rows
  • Cell modifications: Changed values, formulas, or formatting
  • Structural changes: Added or removed worksheets, columns, or rows
  • Formatting differences: Style, color, font, and alignment changes

GroupDocs.Comparison provides a high‑level .NET API that automatically detects these differences and renders them in a new workbook with customizable visual indicators.

Common Use Cases for Excel Comparison

GroupDocs.Comparison handles various Excel comparison scenarios:

  • Financial auditing: Compare budget versions, financial reports, and accounting spreadsheets
  • Data validation: Verify data accuracy during migrations or system updates
  • Version control: Track changes across multiple spreadsheet versions
  • Compliance reporting: Audit changes for regulatory compliance
  • Collaborative editing: Review changes made by multiple team members
  • Report generation: Create change summaries for stakeholders
  • CI/CD pipelines: Automated change detection in Excel‑based workflows

All these scenarios benefit from GroupDocs.Comparison’s cell‑level detection and customizable output formatting.

GroupDocs.Comparison Excel Comparison Features

GroupDocs.Comparison for .NET provides comprehensive features for Excel spreadsheet comparison:

Note: The complete working project with all code examples is available in the GitHub repository. You can clone, run, and customize the examples to suit your needs.

Cell-by-Cell Analysis

GroupDocs.Comparison performs granular cell‑level comparison, detecting insertions, deletions, and modifications with precision. The API understands Excel’s structure, including formulas, formatting, and metadata.

Custom Styling Options

GroupDocs.Comparison’s StyleSettings class allows you to customize the visual appearance of different change types:

  • InsertedItemStyle: Customize appearance of newly added cells
  • DeletedItemStyle: Style removed cells
  • ChangedItemStyle: Format modified cells
  • Font colors, bold, italic, underline: Full formatting control

Summary Page Generation

GroupDocs.Comparison can automatically generate a summary page listing all detected changes, providing a quick overview of modifications without examining each cell individually.

Visibility Controls

GroupDocs.Comparison provides fine‑grained control over what appears in the comparison result:

  • ShowInsertedContent: Show or hide inserted cells
  • ShowDeletedContent: Show or hide deleted cells
  • LeaveGaps: Preserve document structure by leaving gaps for deleted content

Multi-Format Support

GroupDocs.Comparison supports Excel formats (XLSX, XLS) along with Word, PDF, PowerPoint, images, and more. The API handles format‑specific optimizations automatically.

Source and Target Files

The following images show the source and target Excel files. At first glance, they appear identical, but GroupDocs.Comparison will detect subtle differences at the cell level.

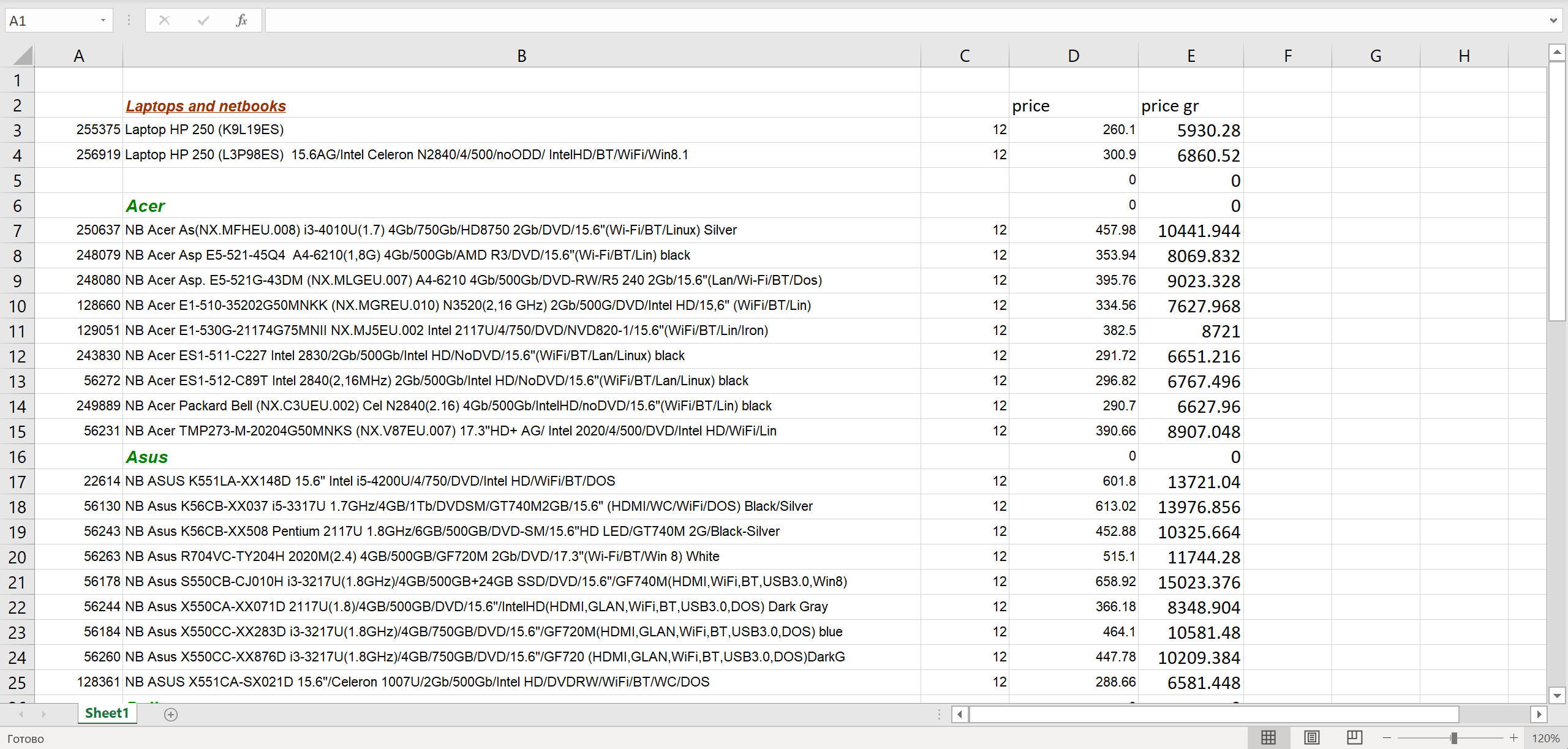

Archivo Excel Fuente

Hoja de cálculo Excel fuente que contiene los datos originales.

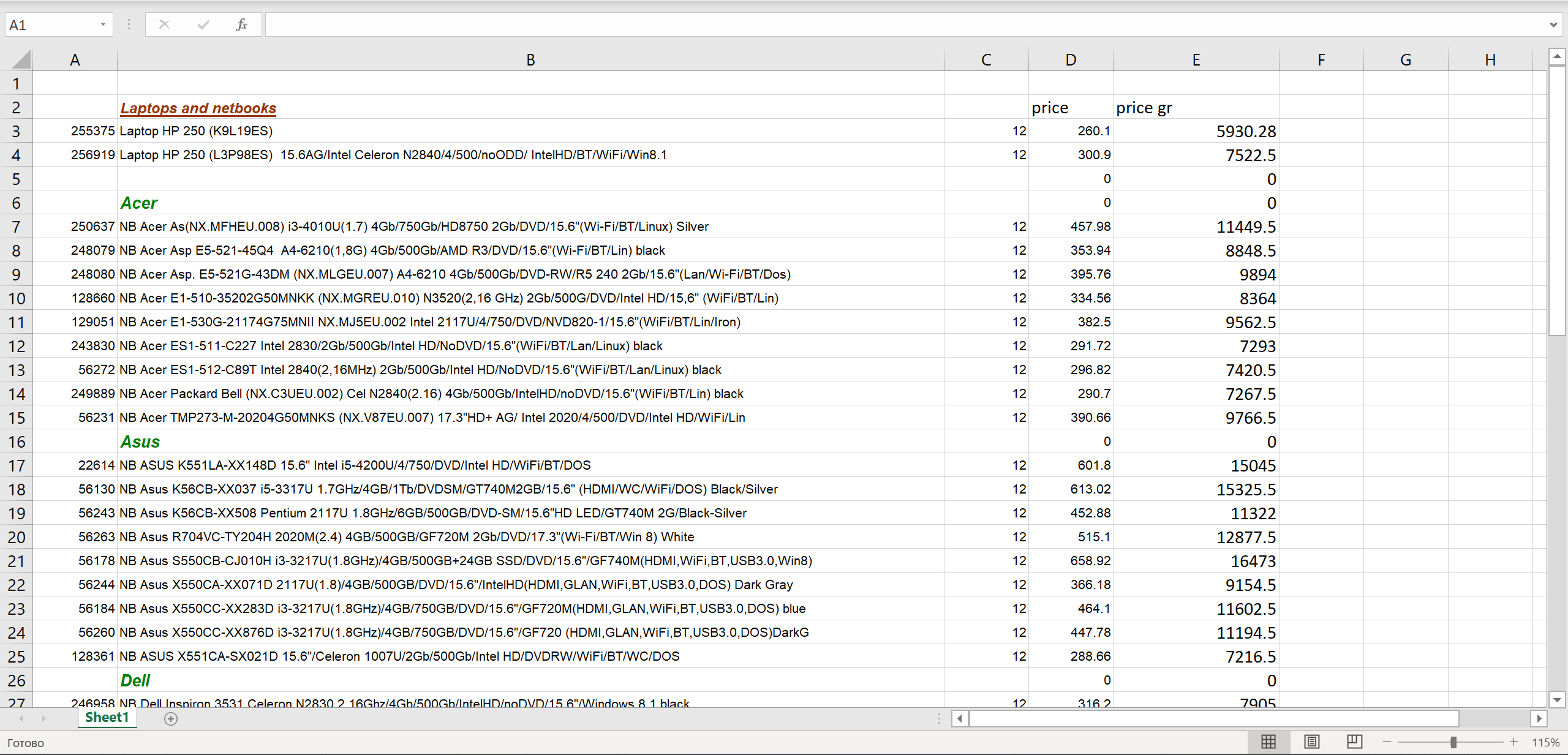

Archivo Excel Destino

Hoja de cálculo Excel destino con modificaciones que deben identificarse.

Code Example: Excel Comparison with GroupDocs.Comparison

This example demonstrates GroupDocs.Comparison’s Excel comparison capabilities:

Step 1: Basic Excel Comparison

First, perform a basic comparison using default settings:

using GroupDocs.Comparison;
using GroupDocs.Comparison.Options;

private static void BasicComparison(string sourcePath, string targetPath, string resultPath)
{
    EnsureFileExists(sourcePath, "source Excel file");
    EnsureFileExists(targetPath, "target Excel file");

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath);
    }

    Console.WriteLine("Basic comparison completed.");
}

This code uses GroupDocs.Comparison’s Comparer class to compare two Excel files with default styling, highlighting all differences automatically.

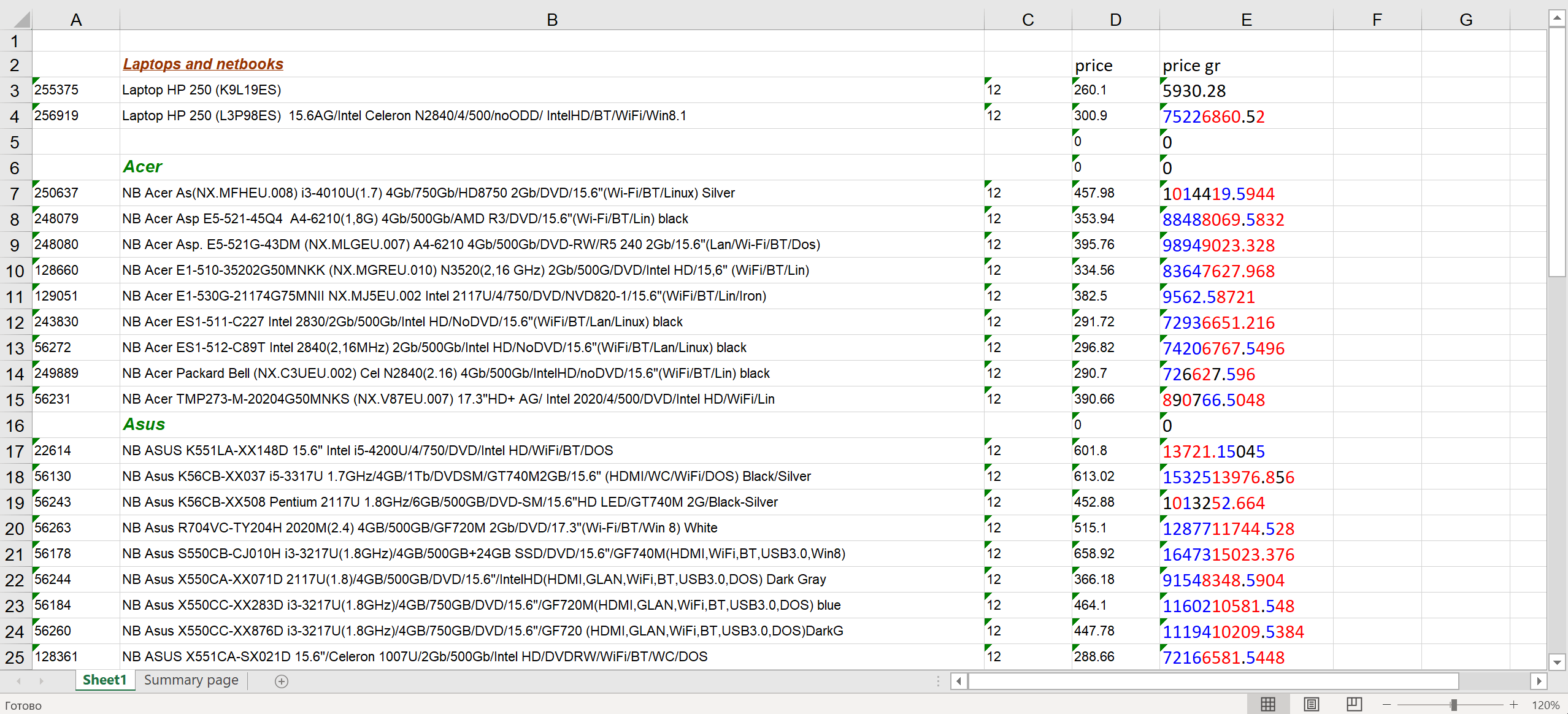

Resultado de Comparación Básica

Resultado de comparación básica que muestra todas las diferencias detectadas con el formato predeterminado. Las celdas insertadas se resaltan en un color, las eliminadas en otro y las modificadas en un tercer color.

The basic comparison provides a comprehensive view of all changes, making it ideal for initial analysis and quick change detection.

Step 2: Styled Comparison with Custom Formatting

Next, apply custom styling and generate a summary page:

private static void StyledComparison(string sourcePath, string targetPath, string resultPath)
{
    EnsureFileExists(sourcePath, "source Excel file");
    EnsureFileExists(targetPath, "target Excel file");

    var compareOptions = new CompareOptions
    {
        InsertedItemStyle = new StyleSettings()
        {
            FontColor = System.Drawing.Color.Green,
            IsUnderline = true,
            IsBold = true,
            IsItalic = true
        },
        DeletedItemStyle = new StyleSettings()
        {
            FontColor = System.Drawing.Color.Brown,
            IsUnderline = true,
            IsBold = true,
            IsItalic = true
        },
        ChangedItemStyle = new StyleSettings()
        {
            FontColor = System.Drawing.Color.Firebrick,
            IsUnderline = true,
            IsBold = true,
            IsItalic = true
        },
        GenerateSummaryPage = true,
        ShowDeletedContent = false,
    };

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath, compareOptions);
    }

    Console.WriteLine("Styled comparison completed (changes highlighted, summary page generated).");
}

This example demonstrates GroupDocs.Comparison’s CompareOptions and StyleSettings classes for custom formatting. Inserted cells appear in green, deleted cells in brown, and changed cells in firebrick, all with bold, italic, and underline formatting.

Step 3: Visibility Controls

GroupDocs.Comparison provides visibility controls for focused analysis:

// Hide inserted content - focus on deletions and modifications
private static void HideInsertedContentComparison(string sourcePath, string targetPath, string resultPath)
{
    var compareOptions = new CompareOptions
    {
        ShowInsertedContent = false
    };

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath, compareOptions);
    }
}

// Hide deleted content - focus on additions and modifications
private static void HideDeletedContentComparison(string sourcePath, string targetPath, string resultPath)
{
    var compareOptions = new CompareOptions
    {
        ShowDeletedContent = false
    };

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath, compareOptions);
    }
}

// Leave gaps for deleted content - preserve document structure
private static void LeaveGapsComparison(string sourcePath, string targetPath, string resultPath)
{
    var compareOptions = new CompareOptions
    {
        LeaveGaps = true
    };

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath, compareOptions);
    }
}

// Hide both inserted and deleted content - show only modifications
private static void HideBothContentComparison(string sourcePath, string targetPath, string resultPath)
{
    var compareOptions = new CompareOptions
    {
        ShowInsertedContent = false,
        ShowDeletedContent = false,
        LeaveGaps = true
    };

    using (var comparer = new Comparer(sourcePath))
    {
        comparer.Add(targetPath);
        comparer.Compare(resultPath, compareOptions);
    }
}

These examples demonstrate GroupDocs.Comparison’s flexible visibility controls, allowing you to customize the comparison output based on your analysis needs.

Comparison Results: Hiding Content

GroupDocs.Comparison can hide specific change types to focus your analysis. The following shows results when hiding inserted and deleted content separately.

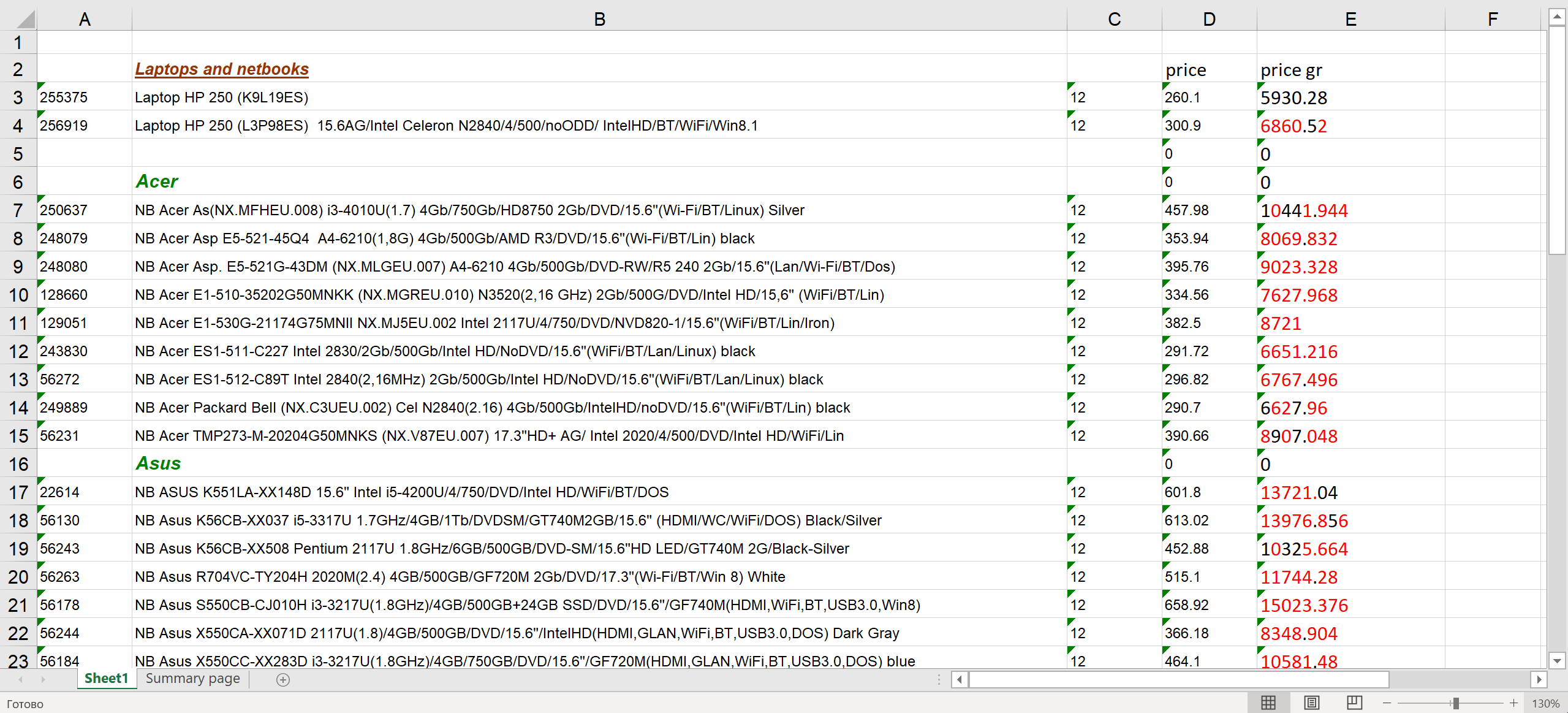

Resultado Ocultando Contenido Insertado

Resultado de comparación con el contenido insertado oculto, centrado en eliminaciones y modificaciones.

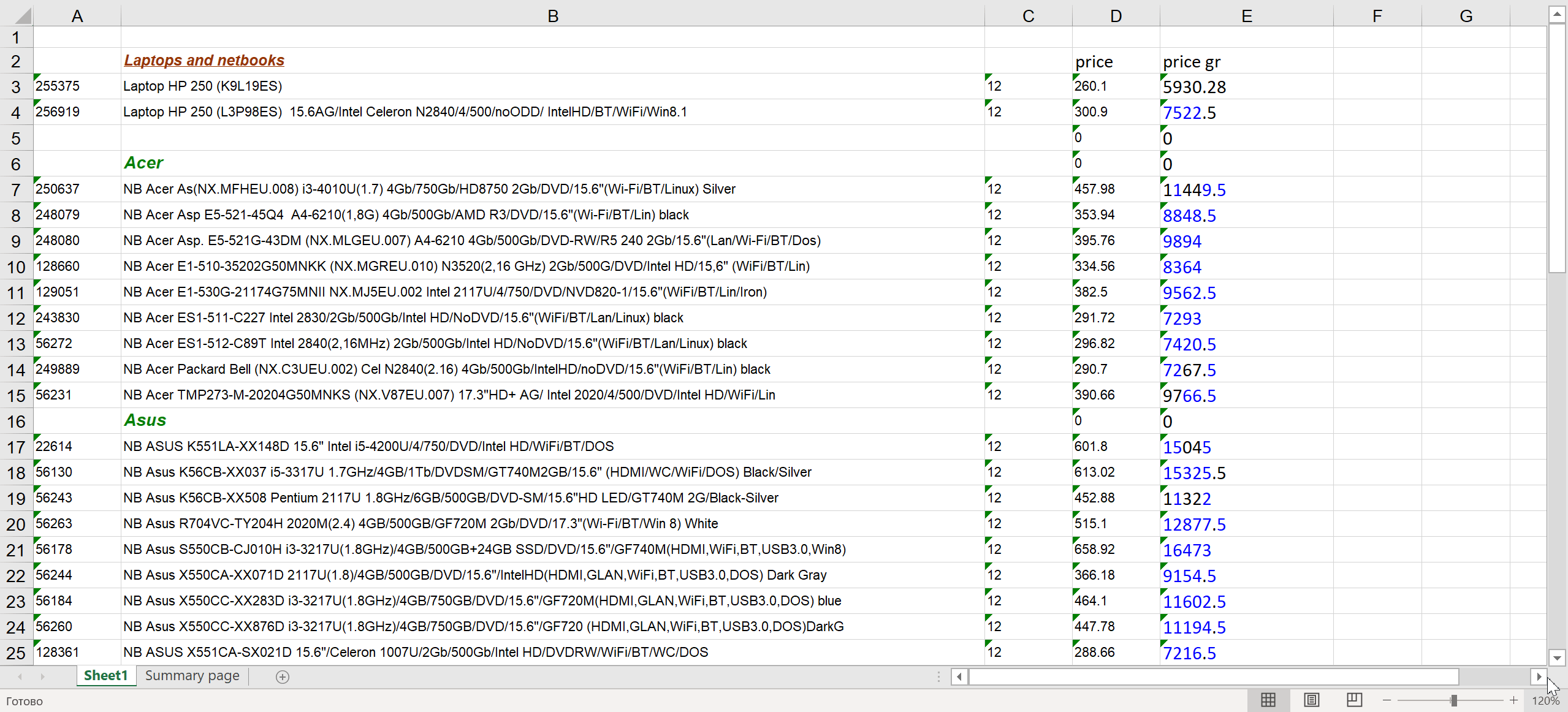

Resultado Ocultando Contenido Eliminado

Resultado de comparación con el contenido eliminado oculto, centrado en inserciones y modificaciones.

Comparison Results: Leaving Gaps

When preserving document structure is important, GroupDocs.Comparison can leave gaps where content was deleted.

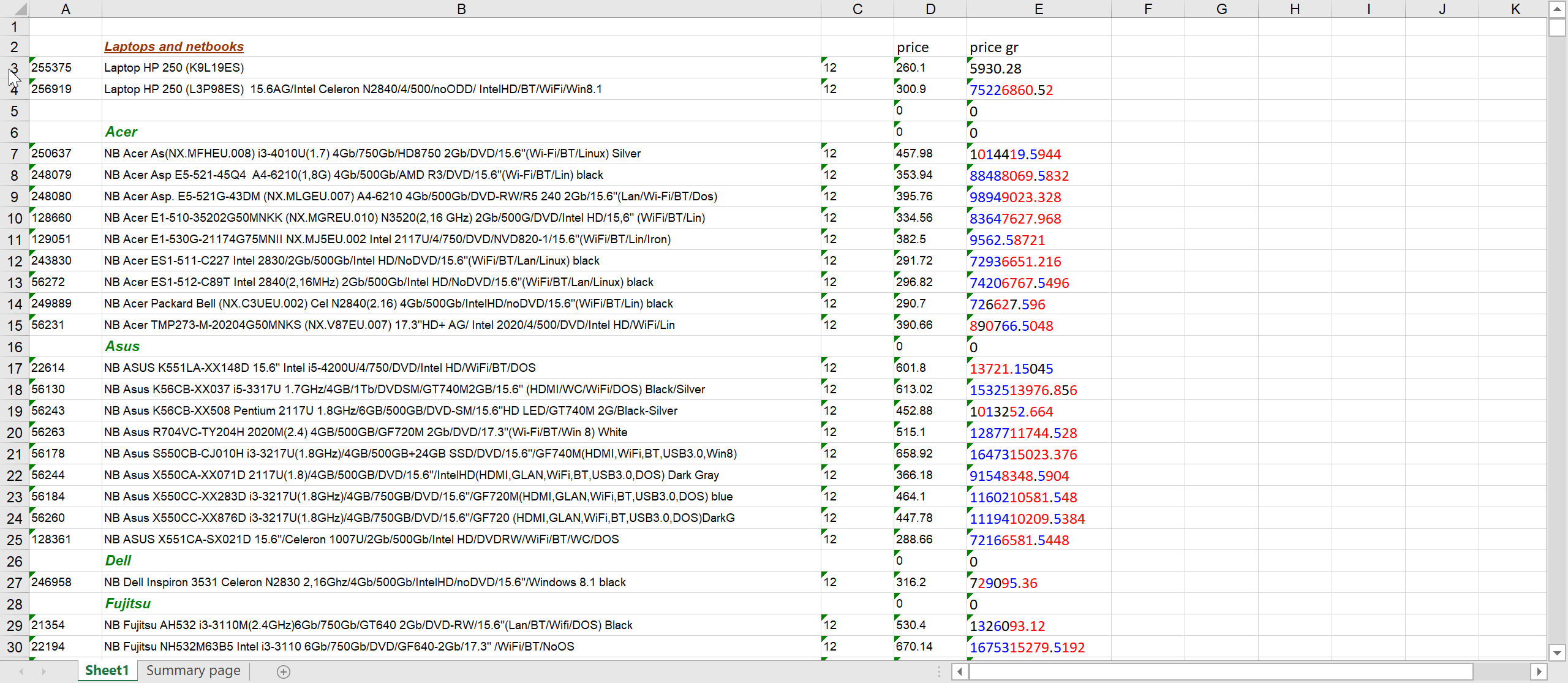

Resultado Dejando Espacios

Resultado de comparación con espacios dejados para el contenido eliminado, conservando la estructura y el diseño original del documento.

Comparison Results: Styled Comparison

Finally, GroupDocs.Comparison’s styled comparison with custom formatting and summary page provides comprehensive change tracking.

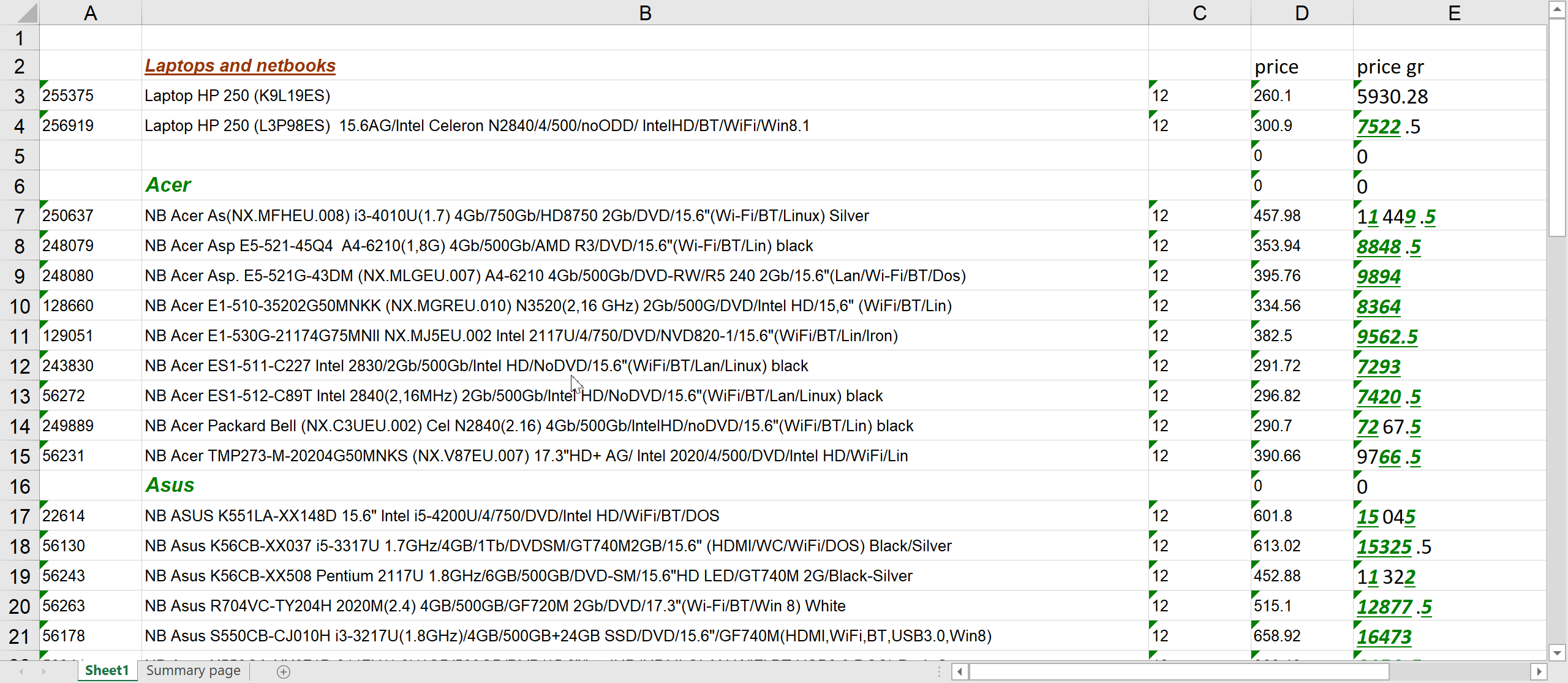

Resultado de Comparación con Estilo

Resultado de comparación con estilo personalizado: verde para inserciones, marrón para eliminaciones, fuego ladrillo para modificaciones, y una página de resumen para revisión rápida.

Why GroupDocs.Comparison Outperforms Manual and Basic Approaches

Manual Comparison Limitations

Manual Excel review doesn’t scale. Comparing two large spreadsheets manually takes hours and is prone to errors. GroupDocs.Comparison automates this process, completing comparisons in seconds with 100 % accuracy.

Excel Built-in Limitations

Excel’s “Track Changes” feature has significant limitations:

  • Requires shared workbooks: Cannot be used in standard workbooks
  • No automation: Manual activation and review required
  • Limited formatting: Basic change indicators only
  • No programmatic access: Cannot integrate into automated workflows
  • Version conflicts: Difficult to manage across multiple versions

GroupDocs.Comparison addresses these limitations with a programmatic API that works with any Excel file and integrates seamlessly into automated workflows.

Text Diff Tool Failures

Standard text diff tools fail with Excel files because they:

  • Treat files as binary: No understanding of Excel structure
  • Can’t handle formatting: Ignore cell styles, colors, and formatting
  • Miss formulas: Don’t understand Excel formulas and calculations
  • No structure awareness: Cannot detect worksheet, row, or column changes
  • Metadata blind: Ignore Excel metadata and properties

GroupDocs.Comparison understands Excel’s format and detects changes at multiple levels: cell values, formulas, formatting, structure, and metadata.

GroupDocs.Comparison Advantages

GroupDocs.Comparison provides comprehensive Excel comparison capabilities:

  • Format‑aware comparison: Understands Excel structure and semantics
  • Cell‑level precision: Detects changes at individual cell level
  • Custom styling: Full control over visual appearance of changes
  • Summary pages: Automatic generation of change summaries
  • Visibility controls: Show or hide specific change types
  • Programmatic API: Integrate into automated workflows
  • Multi‑format support: Compare Excel along with Word, PDF, PowerPoint, and more

Real-World Excel Comparison Scenarios

Financial Auditing Workflow

GroupDocs.Comparison enables automated financial auditing:

// Compare budget versions with custom styling
var auditOptions = new CompareOptions
{
    InsertedItemStyle = new StyleSettings()
    {
        FontColor = System.Drawing.Color.Red,  // Highlight new expenses
        IsBold = true
    },
    ChangedItemStyle = new StyleSettings()
    {
        FontColor = System.Drawing.Color.Orange,  // Highlight modifications
        IsBold = true
    },
    GenerateSummaryPage = true
};

using (var comparer = new Comparer("budget_v1.xlsx"))
{
    comparer.Add("budget_v2.xlsx");
    comparer.Compare("audit_report.xlsx", auditOptions);
}

This workflow automatically generates audit reports highlighting budget changes, making financial reviews efficient and accurate.

Data Migration Validation

GroupDocs.Comparison verifies data accuracy during migrations:

// Compare source and migrated data
var validationOptions = new CompareOptions
{
    ShowInsertedContent = false,  // Focus on missing data
    ShowDeletedContent = false,   // Focus on extra data
    LeaveGaps = true              // Preserve structure
};

using (var comparer = new Comparer("source_data.xlsx"))
{
    comparer.Add("migrated_data.xlsx");
    comparer.Compare("validation_report.xlsx", validationOptions);
}

This approach ensures data integrity by identifying discrepancies between source and migrated data.

Collaborative Editing Review

GroupDocs.Comparison tracks changes in collaborative environments:

// Review changes from multiple contributors
var reviewOptions = new CompareOptions
{
    InsertedItemStyle = new StyleSettings()
    {
        FontColor = System.Drawing.Color.Green,
        IsBold = true
    },
    DeletedItemStyle = new StyleSettings()
    {
        FontColor = System.Drawing.Color.Red,
        IsStrikethrough = true
    },
    ChangedItemStyle = new StyleSettings()
    {
        FontColor = System.Drawing.Color.Blue,
        IsUnderline = true
    },
    GenerateSummaryPage = true
};

using (var comparer = new Comparer("original.xlsx"))
{
    comparer.Add("collaborative_version.xlsx");
    comparer.Compare("review_report.xlsx", reviewOptions);
}

This workflow provides clear visual indicators of all changes, making collaborative review efficient.

Advanced GroupDocs.Comparison Features

License Management

GroupDocs.Comparison requires a license for production use:

private static void ApplyLicense()
{
    string licensePath = "path to your license file";
    License license = new License();
    license.SetLicense(licensePath);
}

Apply the license before performing comparisons to enable full functionality. Without a license, GroupDocs.Comparison operates in evaluation mode with limitations.

Error Handling

GroupDocs.Comparison provides robust error handling:

private static void EnsureFileExists(string path, string description)
{
    if (!File.Exists(path))
    {
        throw new FileNotFoundException($"The {description} was not found. Path: {path}", path);
    }
}

Validate file existence before comparison operations to prevent runtime errors and provide clear error messages.

Batch Processing

GroupDocs.Comparison supports batch processing for multiple Excel files:

var excelFiles = Directory.GetFiles("source", "*.xlsx");
var targetFiles = Directory.GetFiles("target", "*.xlsx");

foreach (var sourceFile in excelFiles)
{
    var fileName = Path.GetFileName(sourceFile);
    var targetFile = Path.Combine("target", fileName);

    if (File.Exists(targetFile))
    {
        using (var comparer = new Comparer(sourceFile))
        {
            comparer.Add(targetFile);
            comparer.Compare(Path.Combine("output", $"comparison_{fileName}"));
        }
    }
}

This approach enables automated batch comparison of entire directories of Excel files.

When to Use GroupDocs.Comparison

GroupDocs.Comparison is ideal for:

  • Enterprise applications: Document management and version control systems
  • Financial systems: Budget tracking, auditing, and reporting
  • Data migration tools: Validation and verification workflows
  • Collaborative platforms: Change tracking and review systems
  • CI/CD pipelines: Automated document change detection
  • Compliance systems: Regulatory auditing and reporting
  • Reporting tools: Automated change summary generation

Best Practices for Excel Comparison

1. Choose Appropriate Visibility Settings

Select visibility controls based on your analysis needs:

  • Full comparison: Show all changes for comprehensive review
  • Focused analysis: Hide specific change types to focus on relevant modifications
  • Structure preservation: Use LeaveGaps to maintain document layout

2. Customize Styling for Clarity

Use distinct colors and formatting for different change types:

  • Insertions: Green or blue for new content
  • Deletions: Red or brown for removed content
  • Modifications: Orange or yellow for changed content

3. Generate Summary Pages

Enable summary page generation for quick change overview:

compareOptions.GenerateSummaryPage = true;

Summary pages provide a high‑level view of all changes without examining individual cells.

4. Validate Input Files

Always validate file existence before comparison:

EnsureFileExists(sourcePath, "source Excel file");
EnsureFileExists(targetPath, "target Excel file");

This prevents runtime errors and provides clear error messages.

5. Handle Large Files Efficiently

For large Excel files, consider:

  • Processing in batches
  • Using appropriate visibility settings to reduce output size
  • Disabling summary pages if not needed for performance

Conclusion

GroupDocs.Comparison for .NET provides powerful features for Excel spreadsheet comparison with advanced cell‑by‑cell analysis. The API enables programmatic comparison with custom styling, summary pages, and flexible visibility controls, making it ideal for financial auditing, data validation, version control, and collaborative workflows.

Key GroupDocs.Comparison advantages:

  • Cell‑level precision: Detects changes at individual cell level
  • Custom styling: Full control over visual appearance of changes
  • Summary pages: Automatic generation of change summaries
  • Visibility controls: Show or hide specific change types
  • Programmatic API: Integrate into automated workflows
  • Multi‑format support: Compare Excel along with Word, PDF, PowerPoint, and more
  • Production‑ready: Robust error handling and file validation

With GroupDocs.Comparison, you can transform Excel comparison from manual inspection into an automated, scalable process that provides accurate, visually clear change tracking for enterprise workflows.

See Also

Download a Free Trial

You can download a free trial of GroupDocs.Comparison from the releases page. Additionally, to test the library without restrictions, consider acquiring a temporary license at GroupDocs Temporary License.

With GroupDocs.Comparison for .NET, integrating advanced Excel comparison capabilities into your applications has never been easier. Start enhancing your document processing workflow today!
